26/35kV 1×400mm² Medium-Voltage Power Cable
- Suitable for high-capacity, high-efficiency medium-voltage power transmission systems.
- Large cross-section (400mm²) high-purity copper conductor, offering high current carrying capacity, strong transmission capability, and low loss.
- Cross-linked polyethylene (XLPE) insulation, resistant to high temperatures and aging, ensuring stable and reliable long-term operation.
- Metal shielding, water-blocking layers, and armoring can be selected according to requirements to adapt to different laying environments.
- Suitable for fixed laying applications requiring high-capacity single-core power transmission, such as substation incoming and outgoing lines, urban main power grids, large industrial projects, and new energy booster stations.
Description
26/35kV 1×400mm² Medium-Voltage Power Cable

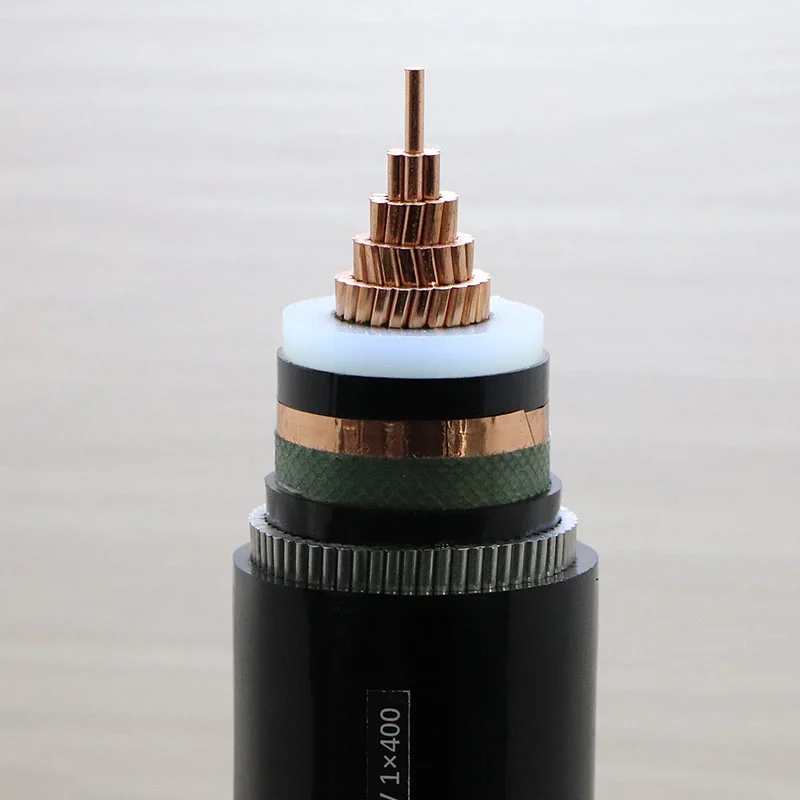

Conductor: Copper, round, tightly stranded conductor, 400mm² cross-section
Conductor shielding (inner shielding layer): Extruded cross-linked semiconductive material (critical structural layer of medium-voltage cables)
Main insulation layer: Cross-linked polyethylene (XLPE), the core of the cable’s electrical insulation.
Insulation shielding (outer shielding layer): Extruded cross-linked semiconductive material
Metallic shielding layer: Copper tape shielding or copper wire shielding
Longitudinal water-blocking layer: Semi-conductive water-blocking tape or aluminum-plastic composite tape (configured as needed)
Strap layer: Non-hygroscopic tape
Inner sheath (isolation sleeve): Polyethylene (PE) or Polyvinyl chloride (PVC)
Armor layer: Steel wire armor provides mechanical protection and impact resistance.
Outer sheath: Polyvinyl chloride (PVC), polyethylene (PE), or halogen-free low-smoke polyolefin (WD)
Application
The YJV22 26/35kV 1×400mm² single-core medium-voltage armored cable is specifically designed for high-current transmission scenarios and is suitable for substation incoming and outgoing lines, power plant auxiliary lines, and high-voltage trunk lines in large industrial parks. Its single-core, large-section structure can withstand higher loads, and the armored design ensures mechanical safety during direct burial, conduit installation, and tunnel laying. It is particularly suitable for new energy booster stations, high-voltage motor power supply, and power distribution projects requiring single-core installation.
Features/Parameters
Rated voltage: 26/35 kV
Conductor cross-section: 400 mm² (single core)
Insulation material: Cross-linked polyethylene (XLPE)
Long-term operating temperature: 90℃
Short-circuit withstand temperature: 250℃ (maximum 5 seconds)
Armor type: Double-layer steel belt armor
Outer sheath material: Flame-retardant PVC/PE or halogen-free low-smoke polyolefin
Flame retardant rating: Complies with IEC 60332 standard
Implementation standards: GB/T 12706.2, IEC 60502-2
| Rated voltage(uo/u) | Conductor size | Conductor outer diameter(approximately) | XLPE insulation thickness | Outer diameter of insulated wire core(approx.) | Inner sheath (PVC)thickness | Steel belt armor thickness | Outer sheath (PVC)thickness | Calculate the total outer diameter of the cable(approximately). | Approximate weigh of cable | |
|---|---|---|---|---|---|---|---|---|---|---|
| Medium voltage power cables | kV | mm2 | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 26/35 | 3x95 | 12.5 | 10.5 | 33.5 | 2 | 2x0.5 | 3 | 91 | 10800 | |
| 26/35 | 3x185 | 17 | 10.5 | 38 | 2.2 | 2x0.5 | 3 | 102 | 14800 | |
| 26/35 | 3x300 | 21.5 | 10.5 | 42.5 | 2.4 | 2x0.8 | 3 | 113 | 19400 | |
| 26/35 | 1x400 | ～24.5 | ～16.0 | ～56.5 | ～2.2 | 2x0.5 | ～3.5 | ～70-74 | ～8500-9500 |
Certificates and Conformity
This cable is manufactured in strict accordance with national and International Electrotechnical Commission (IEC) standards, and has passed the GB/T 12706.2 and IEC 60502-2 type tests. Its flame retardant performance meets the IEC 60332 series standards. The manufacturer holds the corresponding quality management system certification and industry access certificates, and has the capability for both mass production and customized manufacturing. The products can meet the needs of various medium-voltage power transmission and distribution projects both domestically and internationally.
We hold the necessary quality management system certifications and product certifications, and our products can meet the stringent environmental and safety requirements of projects both domestically and internationally. When selecting products, please confirm the flame retardant rating (e.g., ZA, ZB, ZC) and whether additional tests such as fire resistance and rodent/termite resistance are required, based on specific engineering specifications.
Package
Factory
The factory covers an area of 60,000 square meters, with a building area of 50,000 square meters, and an annual production capacity exceeding 1.5 billion yuan.
It is equipped with 389 sets of highly efficient and advanced production and testing equipment, encompassing intelligent production lines and a precision testing system. The factory strictly adheres to quality control through a precise automated inspection mechanism. From the beginning to the final stage of manufacturing, products undergo thorough inspection.
Ten core products: High-voltage cables, low-voltage power cables, mineral-insulated fire-resistant cables, pre-branched cables, flame-retardant and fire-resistant wires and cables, low-smoke halogen-free power cables, control cables, overhead insulated cables, computer cables, and special cables, etc.
