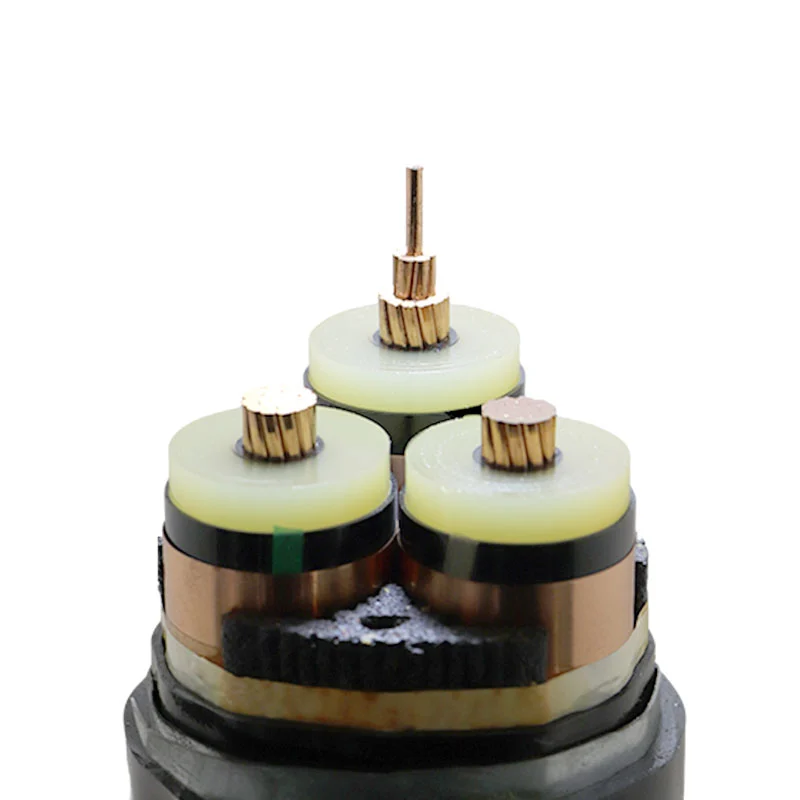

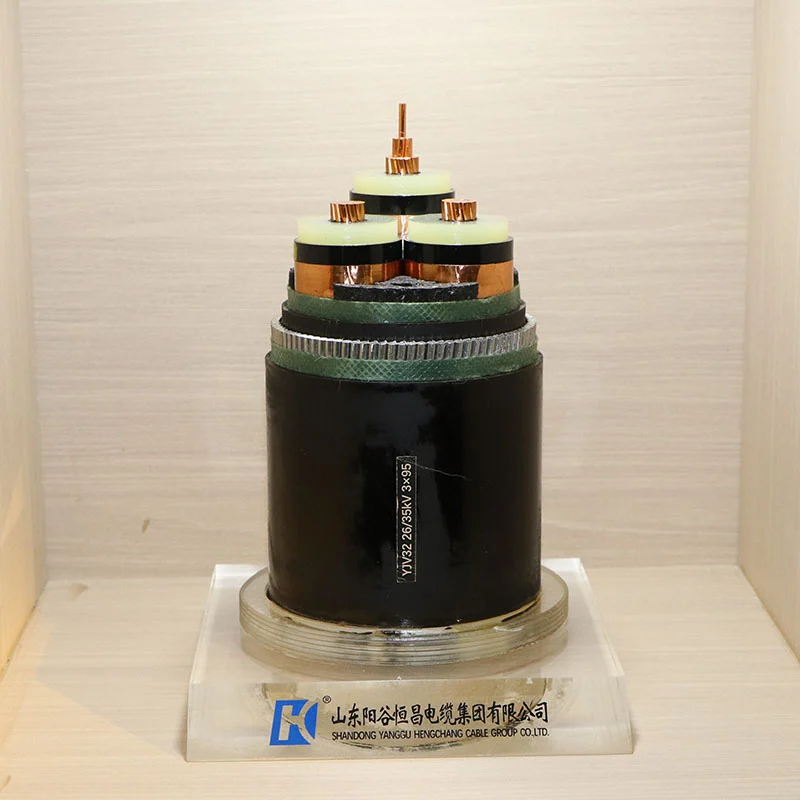

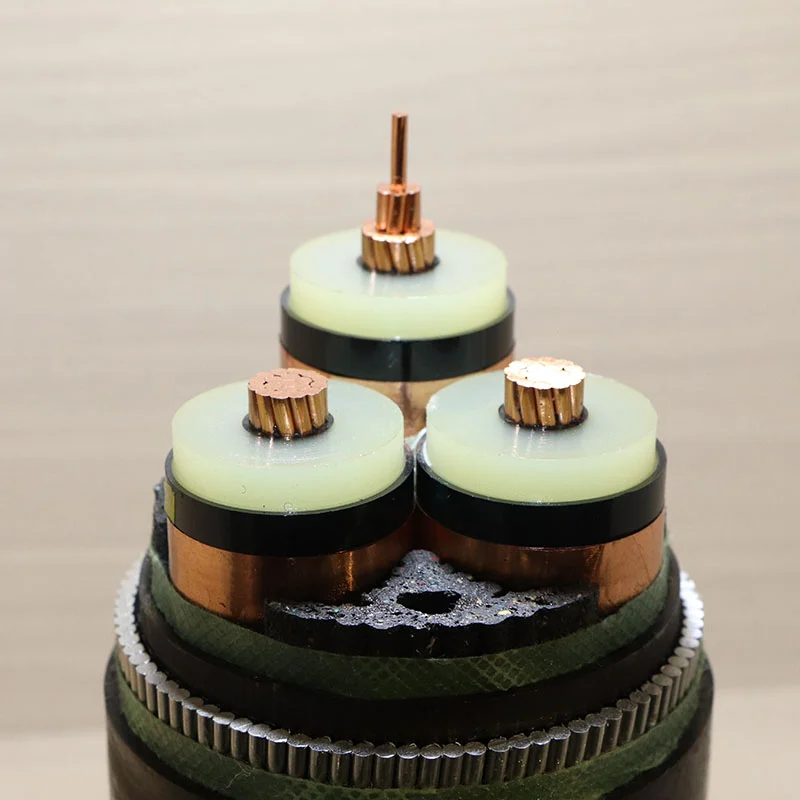

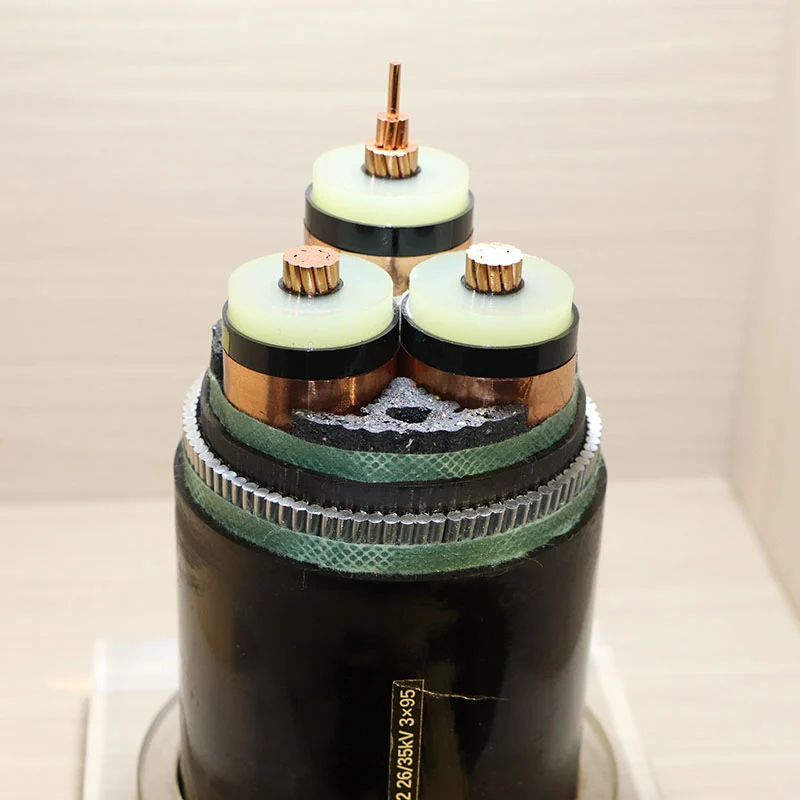

26/35kV 3×95mm² Medium-Voltage Power Cable
- A highly reliable power transmission solution designed for harsh environments.
- Utilizing a high-purity copper core and XLPE insulation, it boasts strong conductivity, excellent heat resistance, stable operation, and a long service life.
- Double-layer steel tape armor provides pressure and impact resistance; a flame-retardant sheath ensures safety.
- A three-layer co-extruded shielding structure ensures a uniform electric field; an optional water-blocking layer allows for adaptation to complex environments.
- Suitable for medium-voltage fixed installations in industrial parks, urban power grids, tunnels, utility tunnels, new energy power plants, and data centers.
Description
26/35kV 3×95mm² Medium-Voltage Power Cable
Conductor : Copper, round compacted bonded conductor
Conductor shielding (also known as inner shielding or conductor shielding layer) : Extruded cross-linked semi-conductive material , a standard critical layer for medium and high voltage cables; low voltage cables do not have this feature.
Main insulation layer : Cross-linked polyethylene (XLPE) , the core of the cable’s electrical insulation.
Insulating shield (also known as external shield or insulating shielding layer) : Extruded cross-linked semiconducting material, similar to conductor shielding.
Metallic shielding layer : copper strip or copper wire shielding
Longitudinal water-blocking layer : Outside the metal shielding layer , wrap semi-conductive water-blocking tape or aluminum-plastic composite tape ( according to customer requirements ).
Filler : Non-hygroscopic material (such as polypropylene rope)
Strapping : Non-moisture-absorbing tape or water-blocking tape
Inner sheath (isolation sleeve) : Polyethylene (PE) or Polyvinyl chloride (PVC)
Armor layer : Steel belt armor provides strong mechanical protection , resisting pressure and impact.
Outer sheath : Polyvinyl chloride (PVC) The ultimate protective layer for polyethylene ( PE) and halogen-free low-smoke polyolefin (WD) cables.
Application
This YJV22 26/35kV 3×95mm² medium-voltage copper core armored power cable is a reliable choice for building medium-voltage power distribution networks and achieving efficient power transmission. Its copper conductors and cross-linked polyethylene insulation ensure electrical performance, while the double-layer steel tape armor provides excellent mechanical protection.
The cables are suitable for harsh environments such as main power distribution in industrial parks, underground utility tunnels in cities, tunnel and bridge installations, and high-voltage power transmission within factories and mines. They can also be used in applications requiring high-reliability fixed installation, such as power collection systems for new energy power plants and high-voltage power supply for data centers.
The cable features a flame-retardant outer sheath that meets international standards, enabling it to operate stably for extended periods in complex environments and providing a safe and durable solution for various medium-voltage power transmission applications.
Features/Parameters
This JV22 26/35kV 3×95mm² medium-voltage copper core armored power cable uses high-purity compacted round copper conductors, ensuring a stable and reliable structure. It employs cross-linked polyethylene (XLPE) as the primary insulation material, possessing excellent electrical properties, heat resistance, and anti-aging characteristics. The double-layer steel tape armor structure provides superior resistance to compression and mechanical damage, while the flame-retardant PVC outer sheath meets the IEC 60332 flame-retardant standard.
The cable has a rated voltage of 26/35kV, a maximum long-term allowable operating temperature of 90℃, and a maximum short-circuit withstand temperature of 250℃. The product complies with GB/T 12706.2 and IEC 60502-2 standards and is suitable for fixed installation in medium-voltage power transmission and distribution systems such as substations, industrial parks, urban power distribution networks, and tunnels, providing a safe and stable solution for power transmission.
| Rated voltage(uo/u) | Conductor size | Conductor outer diameter(approximately) | XLPE insulation thickness | Outer diameter of insulated wire core(approx.) | Inner sheath (PVC)thickness | Steel belt armor thickness | Outer sheath (PVC)thickness | Calculate the total outer diameter of the cable(approximately). | Approximate weigh of cable | |
|---|---|---|---|---|---|---|---|---|---|---|
| Medium voltage power cables | kV | mm2 | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 26/35 | 3x95 | 12.5 | 10.5 | 33.5 | 2 | 2x0.5 | 3 | 91 | 10800 | |
| 26/35 | 3x185 | 17 | 10.5 | 38 | 2.2 | 2x0.5 | 3 | 102 | 14800 | |
| 26/35 | 3x300 | 21.5 | 10.5 | 42.5 | 2.4 | 2x0.8 | 3 | 113 | 19400 | |
| 26/35 | 1x400 | ～24.5 | ～16.0 | ～56.5 | ～2.2 | 2x0.5 | ～3.5 | ～70-74 | ～8500-9500 |
Certificates
This YJV22 26/35kV 3×95mm² medium-voltage copper core armored power cable strictly adheres to international electrotechnical standards. Its copper conductor, cross-linked polyethylene insulation, and armor structure comply with GB/T 12706.2 and IEC 60502-2 standards, and its flame-retardant performance meets the requirements of the IEC/EN 60332 series standards.
We hold certifications in all major markets and have over 10 years of global supply experience, exporting our products to more than 50 countries and regions. With a deep understanding of international power engineering standards, we ensure that every cable segment meets the safety requirements and engineering standards of different markets, providing reliable protection for global energy infrastructure.
Package
Factory
The factory covers an area of 60,000 square meters, with a building area of 50,000 square meters, and an annual production capacity exceeding 1.5 billion yuan.
It is equipped with 389 sets of highly efficient and advanced production and testing equipment, encompassing intelligent production lines and a precision testing system. The factory strictly adheres to quality control through a precise automated inspection mechanism. From the beginning to the final stage of manufacturing, products undergo thorough inspection.
Ten core products: High-voltage cables, low-voltage power cables, mineral-insulated fire-resistant cables, pre-branched cables, flame-retardant and fire-resistant wires and cables, low-smoke halogen-free power cables, control cables, overhead insulated cables, computer cables, and special cables, etc.
FAQ
We typically provide a quote within 6 hours of receiving your inquiry. If you need a price urgently, please call or email us and we will prioritize your request.
We are a 60,000-square-meter cable manufacturing plant. We can control the entire process from order placement to completion. Welcome to visit us; we will pick you up in Shandong.
1) We test all imported raw materials first, and only proceed with production after they pass the tests.
2) Highly efficient and advanced production equipment, and professional and skilled production workers who pay attention to every detail.
3) Quality control of precision automated inspection equipment in the factory
The sample is free for you. New customers need to pay for the express delivery.
Minimum order quantity varies depending on the cable type. Please consult your sales manager.
Packaging is typically in wooden barrels, steel barrels, or reels, depending on the customer's requirements.
