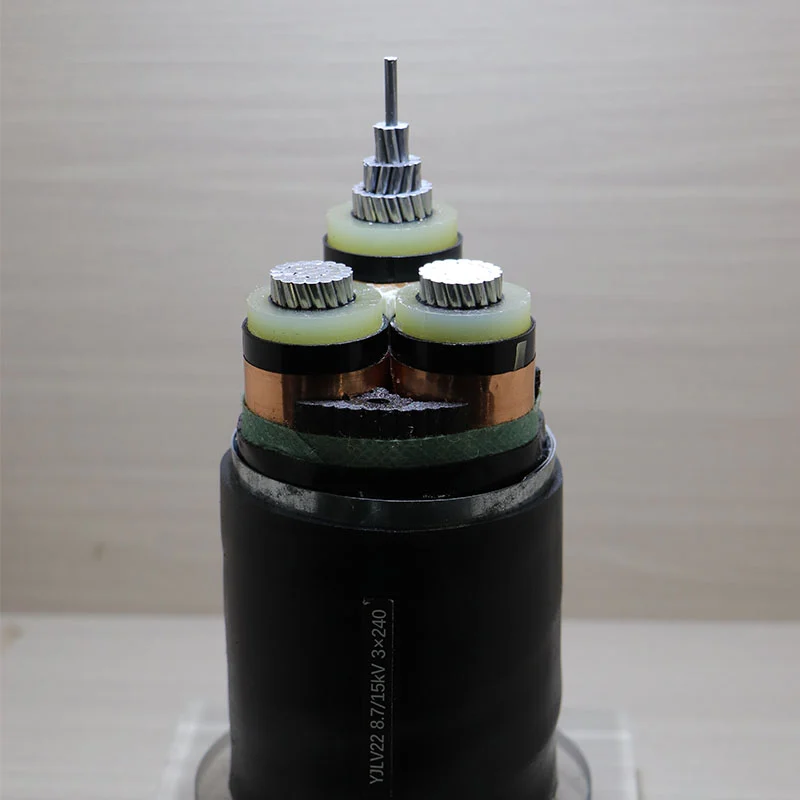

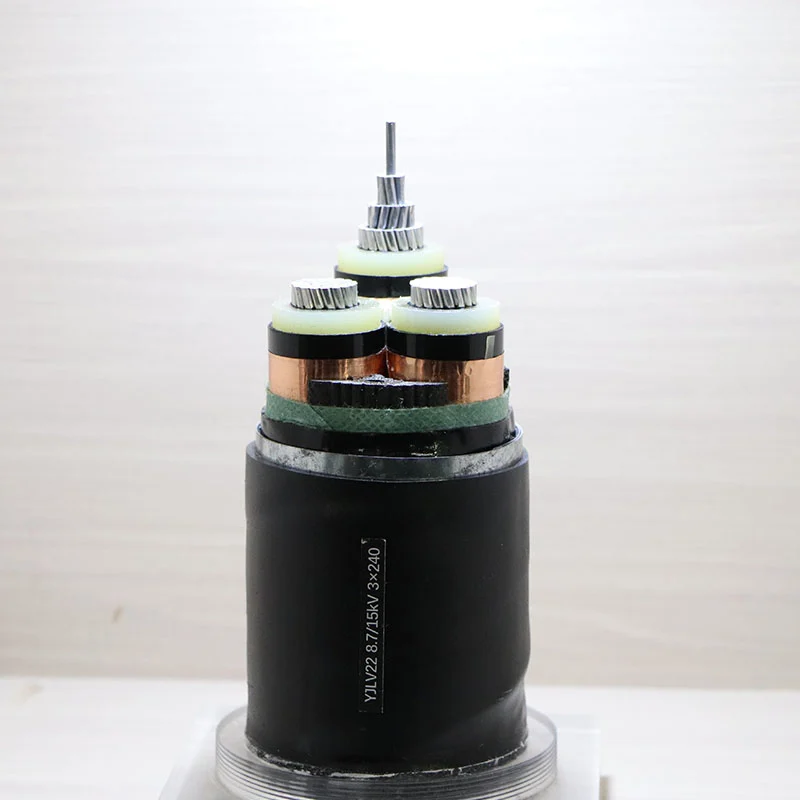

8.7/15kV 3×240mm² Aluminum Alloy Medium-Voltage Armored Power Cable
- Conductor: High-strength aluminum alloy, round tightly stranded conductor, 240mm² × 3 cores
- Conductor shielding (inner shielding layer): Extruded cross-linked semi-conductive material (standard structural layer for medium-voltage cables)
- Main insulation layer: Cross-linked polyethylene (XLPE), the core of the cable's electrical insulation.
- Insulation shielding (outer shielding layer): Extruded cross-linked semiconductive material
- Metallic shielding layer: Copper or aluminum alloy strip shielding
- Filler layer: Non-hygroscopic material (such as polypropylene rope)
- Wrapping layer: Non-moisture-absorbing tape
- Inner sheath (isolation sleeve): Polyethylene (PE) or Polyvinyl chloride (PVC)
- Armor layer: Galvanized steel strip armor (steel strip can be used for three-core structures), providing mechanical protection.
- Outer sheath: Polyvinyl chloride (PVC), polyethylene (PE), or halogen-free low-smoke polyolefin (WD)
Application
This 8.7/15kV 3×240mm² aluminum alloy medium-voltage armored power cable is suitable for 8.7/15kV voltage level transmission and distribution circuits in urban power distribution networks, industrial parks, commercial centers, and new energy power generation projects. The aluminum alloy conductor ensures conductivity while significantly reducing cable weight (approximately 50% of that of a copper cable of the same specification), substantially reducing transportation and installation costs, making it particularly suitable for long-distance, large-span fixed installations.
The cable armor structure enhances its resistance to pressure and impact, making it suitable for various laying environments such as direct burial, cable trenches, tunnels, and pipelines, and meeting stringent mechanical protection requirements.
Features/Parameters
Rated voltage: 8.7/15 kV
Conductor material: 8030 series or AA8000 series high-strength aluminum alloy
Insulation material: Cross-linked polyethylene (XLPE)
Insulation thickness: Nominal 4.5 mm (compliant with GB/T 12706.2 and GB/T 31840.2)
Long-term permissible operating temperature: 90℃
Maximum temperature during short circuit (within 5 seconds): 250℃
Armor type: Double-layer galvanized steel strip
Outer sheath material: Flame-retardant PVC/PE or halogen-free low-smoke polyolefin
Minimum bending radius: Approximately 20 times the cable outer diameter
Approximate cable outer diameter: Approximately 75–80 mm (armored type)
Approximate cable weight: Approximately 7000–8000 kg/km (armored type, depending on sheath material)
Flame retardant rating: Complies with IEC 60332 and GB/T 18380 standards.
Certificates and Conformity
This product is manufactured in strict accordance with GB/T 31840.2 (rated voltage 1kV～35kV aluminum alloy core extruded insulated power cable) and GB/T 12706.2 standards, and has passed the type test of the National Wire and Cable Quality Supervision and Inspection Center. The aluminum alloy conductor meets the relevant requirements of ASTM B800 and IEC 60228, and has excellent creep resistance and corrosion resistance.
Hengchang holds ISO 9001 quality management system certification, CCC certification (if applicable), and relevant industry access qualifications.
Package
Factory
The factory covers an area of 60,000 square meters, with a building area of 50,000 square meters, and an annual production capacity exceeding 1.5 billion yuan.
It is equipped with 389 sets of highly efficient and advanced production and testing equipment, encompassing intelligent production lines and a precision testing system. The factory strictly adheres to quality control through a precise automated inspection mechanism. From the beginning to the final stage of manufacturing, products undergo thorough inspection.
Ten core products: High-voltage cables, low-voltage power cables, mineral-insulated fire-resistant cables, pre-branched cables, flame-retardant and fire-resistant wires and cables, low-smoke halogen-free power cables, control cables, overhead insulated cables, computer cables, and special cables, etc.
FAQ
We typically provide a quote within 6 hours of receiving your inquiry. If you need a price urgently, please call or email us and we will prioritize your request.
We are a 60,000-square-meter cable manufacturing plant. We can control the entire process from order placement to completion. Welcome to visit us; we will pick you up in Shandong.
1) We test all imported raw materials first, and only proceed with production after they pass the tests.
2) Highly efficient and advanced production equipment, and professional and skilled production workers who pay attention to every detail.
3) Quality control of precision automated inspection equipment in the factory
The sample is free for you. New customers need to pay for the express delivery.
Minimum order quantity varies depending on the cable type. Please consult your sales manager.
Packaging is typically in wooden barrels, steel barrels, or reels, depending on the customer's requirements.
