YJLV22 26/35kV Medium Voltage Aluminum Alloy Armored Power Cable

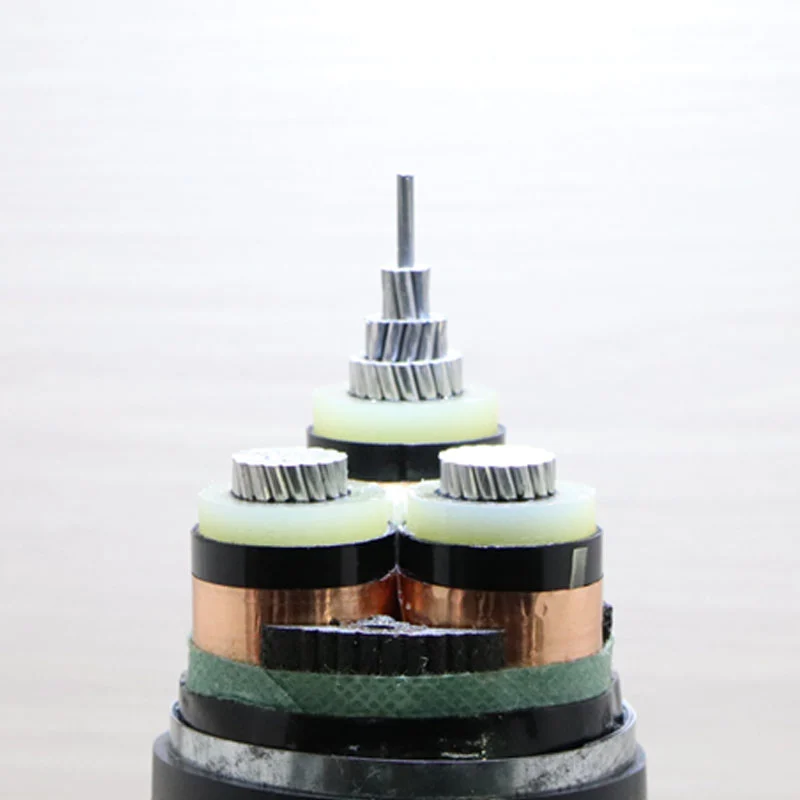

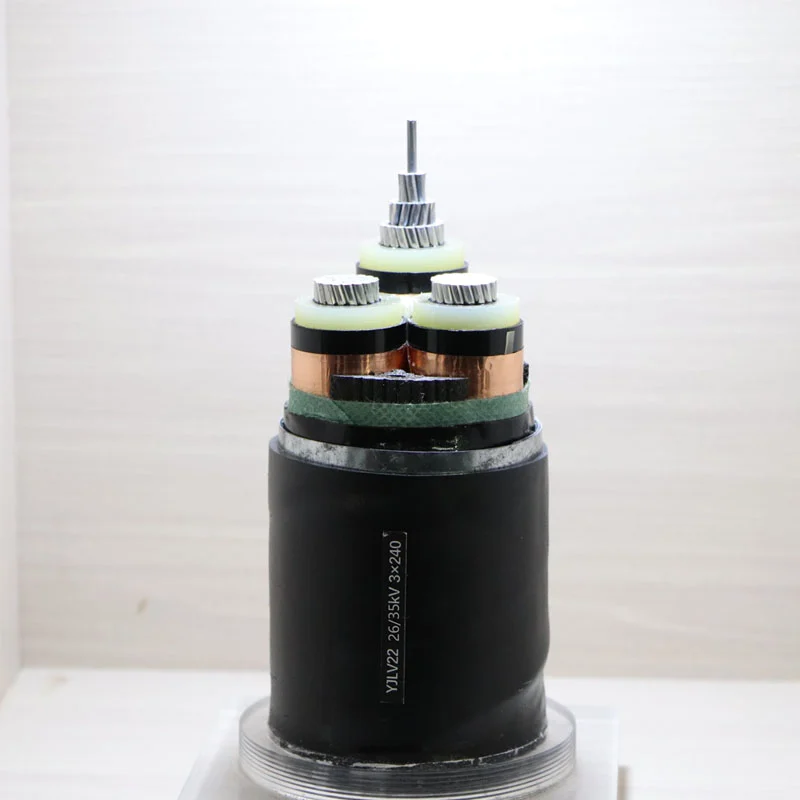

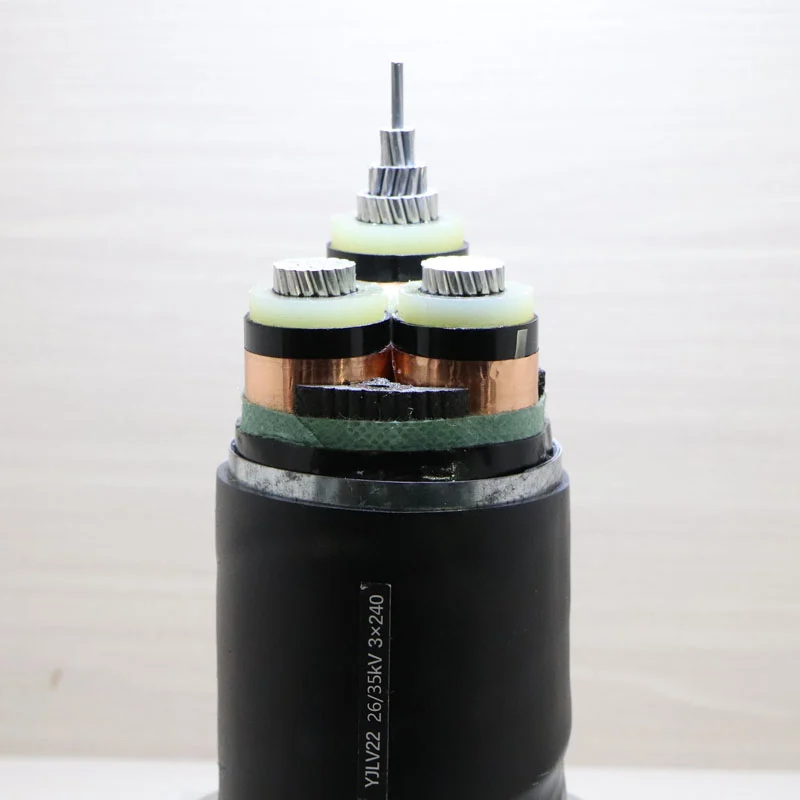

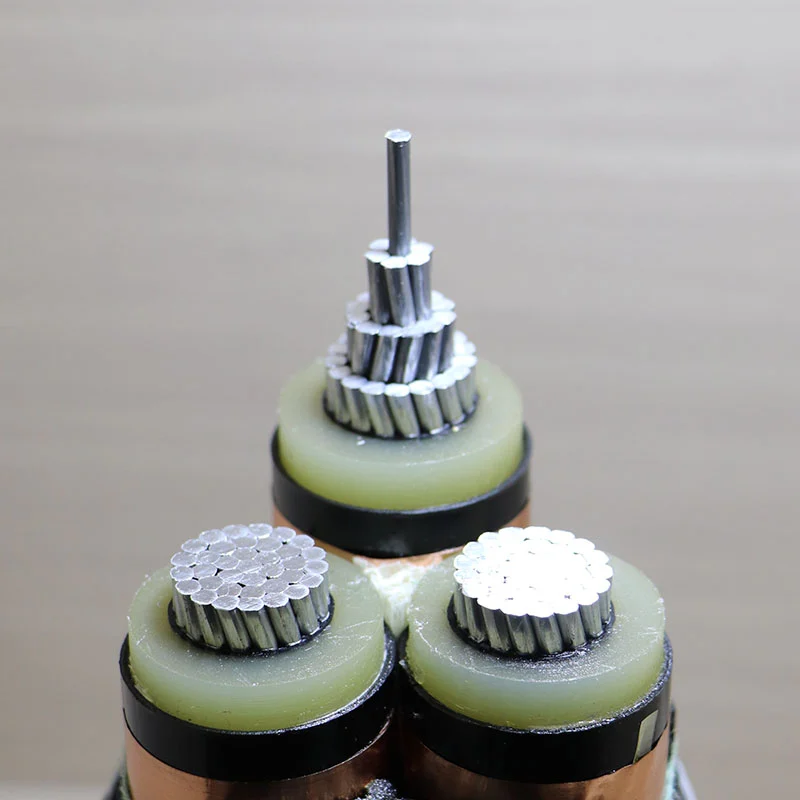

- Conductor: High-strength aluminum alloy, round, tightly stranded conductor
- Conductor shielding (inner shielding layer): Extruded cross-linked semi-conductive material (standard structural layer for medium-voltage cables)
- Main insulation layer: Cross-linked polyethylene (XLPE), the core of the cable's electrical insulation.
- Insulation shielding (outer shielding layer): Extruded cross-linked semiconductive material
- Metallic shielding layer: Copper or aluminum alloy strip shielding
- Filler layer: Non-hygroscopic material (such as polypropylene rope)
- Wrapping layer: Non-moisture-absorbing tape
- Inner sheath (isolation sleeve): Polyethylene (PE) or Polyvinyl chloride (PVC)
- Armor layer: Galvanized steel strip armor provides strong mechanical protection.
- Outer sheath: Polyvinyl chloride (PVC), polyethylene (PE), or halogen-free low-smoke polyolefin (WD)
Application
This YJLV22 26/35kV aluminum alloy medium-voltage armored power cable is an economical solution for building medium-voltage power distribution networks and achieving efficient power transmission. The aluminum alloy conductor ensures reliable conductivity while significantly reducing cable weight (approximately 30%-40% lighter than copper cables of the same specification), substantially reducing transportation, installation, and support costs. It is particularly suitable for long-distance power transmission and fixed installation of large-section trunk lines.
Cable armored structures offer superior protection against pressure and impact, making them suitable for harsh environments requiring high mechanical strength, such as direct burial, cable trenches, tunnels, pipe corridors, and bridges. They are primarily used in main power distribution in industrial parks, urban power grid upgrades, voltage boosting for new energy power plants, and high-voltage power supply for large commercial complexes.
Features/Parameters
Rated voltage: 26/35 kV
Conductor material: 8030 series or AA8000 series high-strength aluminum alloy
Insulation material: Cross-linked polyethylene (XLPE)
Insulation thickness: Nominal 10.5 mm (taking 95 mm² as an example, the specific thickness is based on the conductor cross-section and is specified according to GB/T 12706.2 and GB/T 31840.2 standards)
Long-term permissible operating temperature: 90℃
Maximum temperature during short circuit (within 5 seconds): 250℃
Armor type: Double-layer galvanized steel strip
Outer sheath material: Flame-retardant PVC/PE or halogen-free low-smoke polyolefin
Minimum bending radius: Approximately 20 times the cable outer diameter
Approximate cable outer diameter and weight (taking 3×95mm² as an example):
Outer diameter: Approximately 70-75 mm (armored type)
Weight: Approximately 4500 – 5500 kg/km (armored type, depending on the sheath material and structure)
Flame retardant rating: Complies with IEC 60332 and GB/T 18380 standards.
Certificates and Conformity
This product is manufactured in strict accordance with GB/T 31840.2 (rated voltage 1kV～35kV aluminum alloy core extruded insulated power cable) and GB/T 12706.2 standards, and has passed type testing by a national authoritative testing institution. The aluminum alloy conductor meets the relevant requirements of ASTM B800 and IEC 60228, and has excellent creep resistance and corrosion resistance.
Hengchang Cable holds ISO 9001 quality management system certification, CCC certification (if applicable), and relevant industry access qualifications. With extensive experience in product export, it can provide products that meet international standards such as IEC 60502-2 according to customer needs, offering a reliable and cost-effective option for global power projects.
Package
Factory
The factory covers an area of 60,000 square meters, with a building area of 50,000 square meters, and an annual production capacity exceeding 1.5 billion yuan.
It is equipped with 389 sets of highly efficient and advanced production and testing equipment, encompassing intelligent production lines and a precision testing system. The factory strictly adheres to quality control through a precise automated inspection mechanism. From the beginning to the final stage of manufacturing, products undergo thorough inspection.
Ten core products: High-voltage cables, low-voltage power cables, mineral-insulated fire-resistant cables, pre-branched cables, flame-retardant and fire-resistant wires and cables, low-smoke halogen-free power cables, control cables, overhead insulated cables, computer cables, and special cables, etc.
FAQ
We typically provide a quote within 6 hours of receiving your inquiry. If you need a price urgently, please call or email us and we will prioritize your request.
We are a 60,000-square-meter cable manufacturing plant. We can control the entire process from order placement to completion. Welcome to visit us; we will pick you up in Shandong.
1) We test all imported raw materials first, and only proceed with production after they pass the tests.
2) Highly efficient and advanced production equipment, and professional and skilled production workers who pay attention to every detail.
3) Quality control of precision automated inspection equipment in the factory
The sample is free for you. New customers need to pay for the express delivery.
Minimum order quantity varies depending on the cable type. Please consult your sales manager.

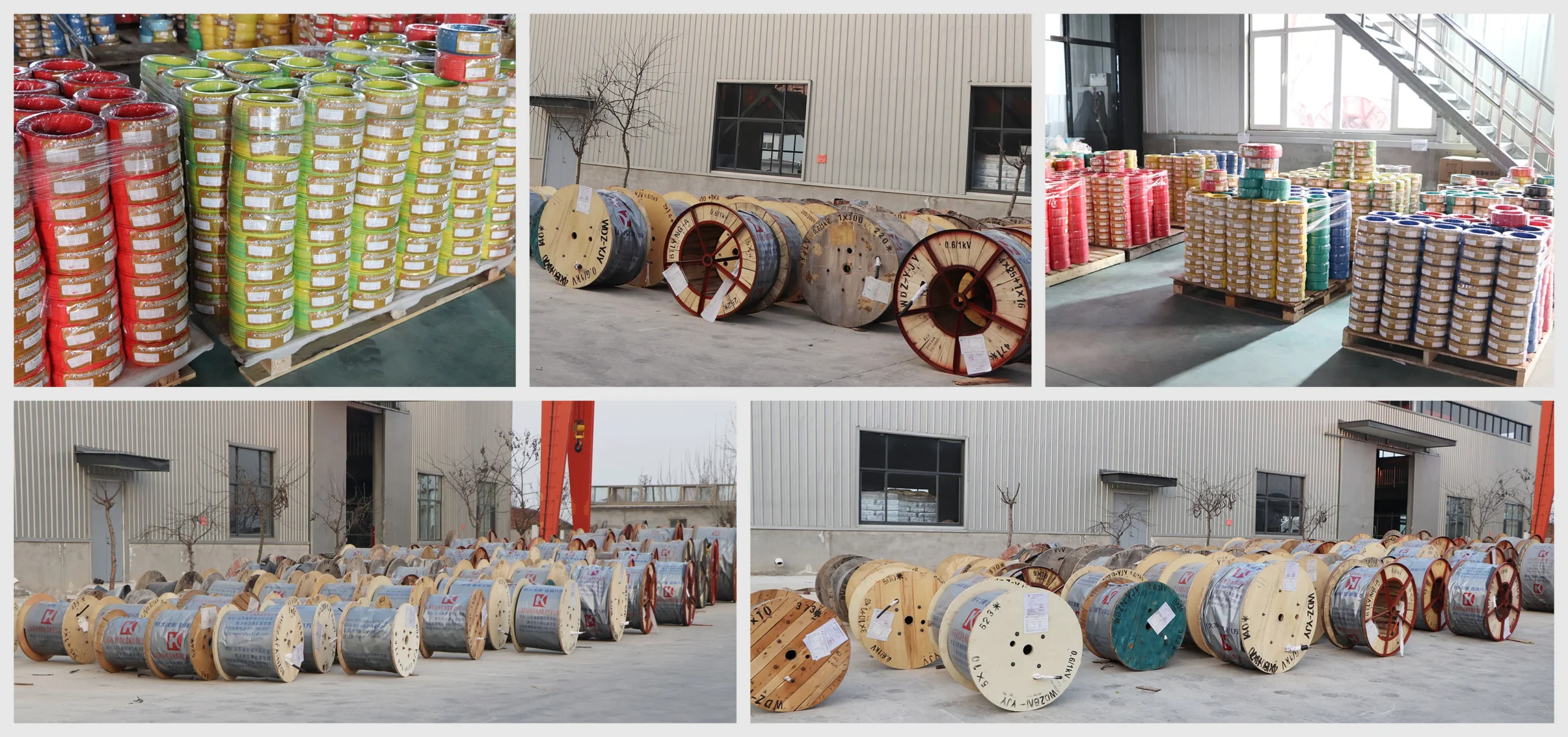

Packaging is typically in wooden barrels, steel barrels, or reels, depending on the customer's requirements.
